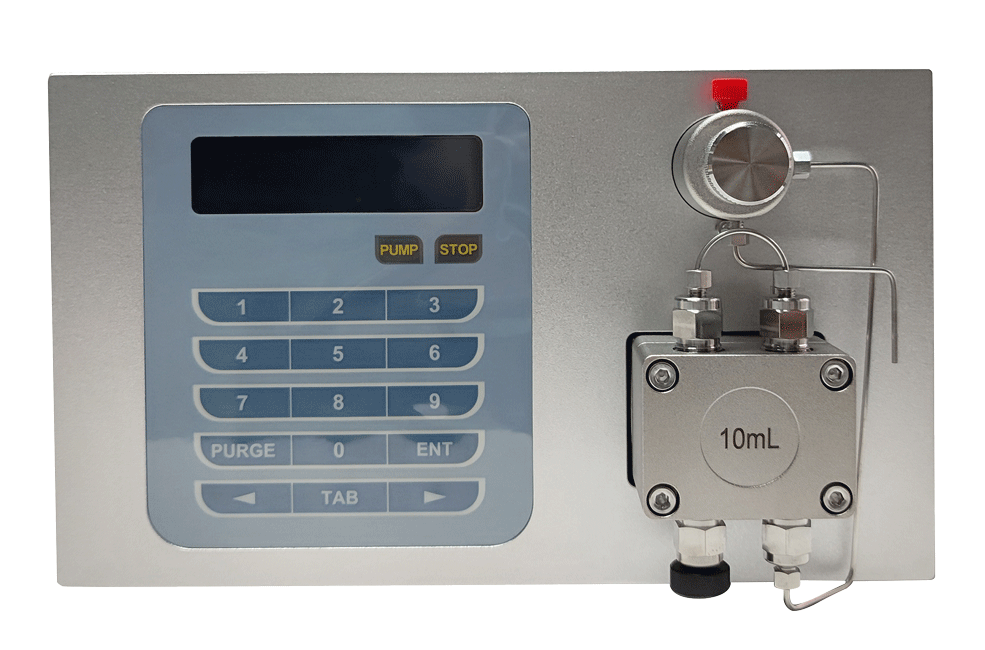

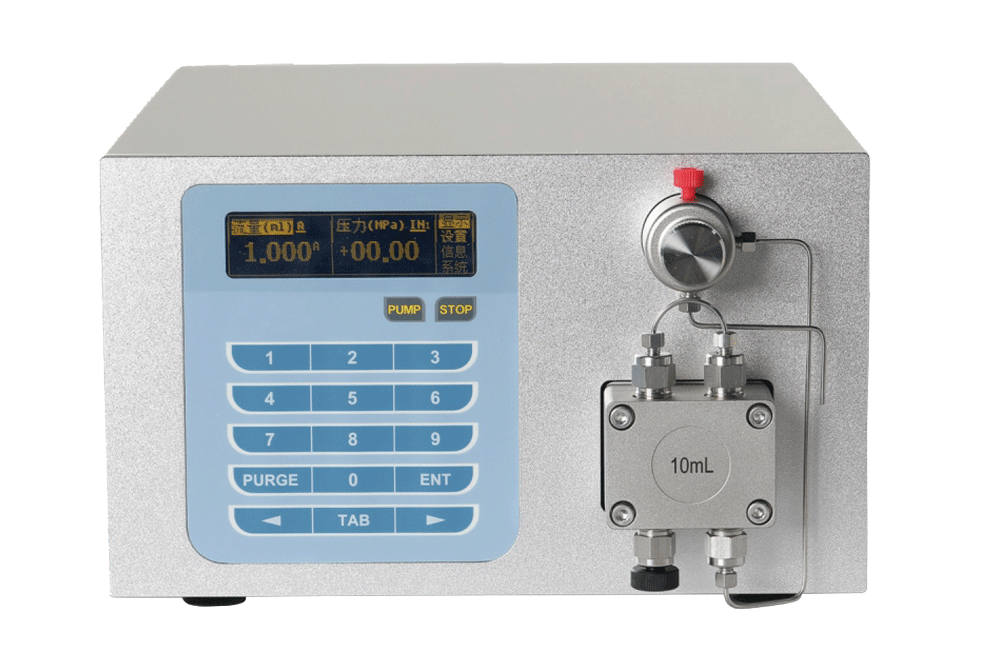

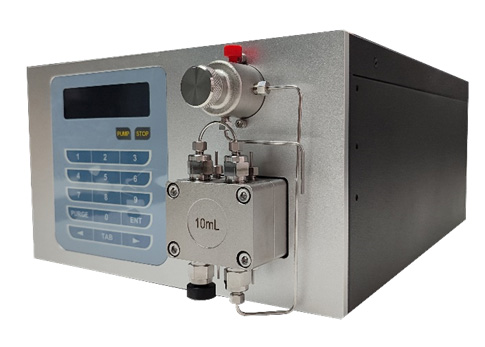

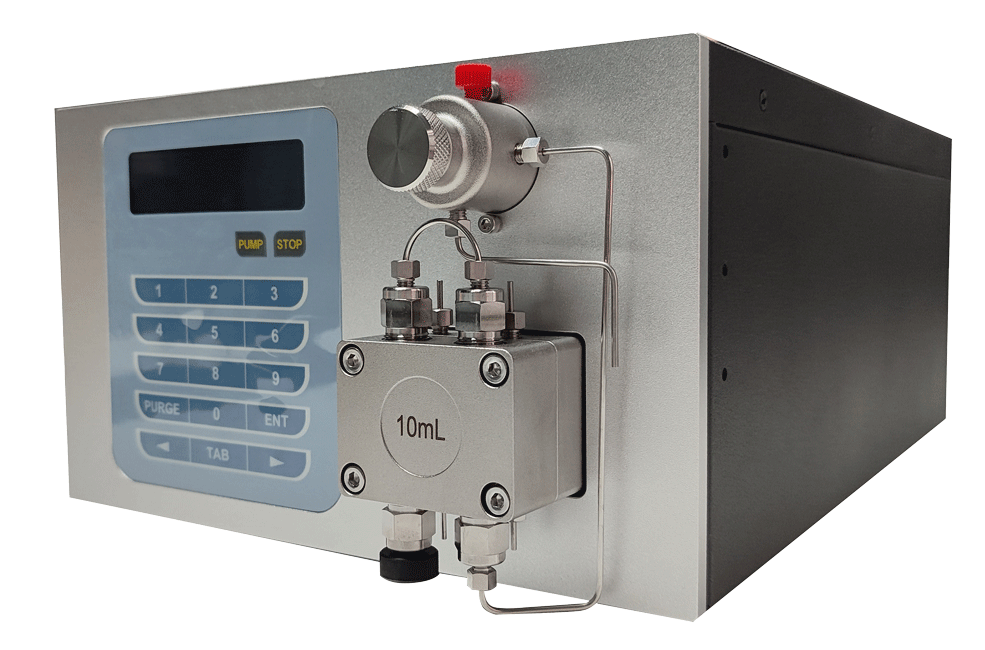

High Pressure Infusion Pump HP Series

Overview:High pressure infusion pump is the core component of accurate liquid material transportation. Widely used in pharmaceutical, fine chemical, green chemistry, catalytic reaction, high molecular chemistry, petrochemical, food, energy, environment, materials and other fields.
contact      Download
  • Product Introduction
  • Product features
  • Product parameters

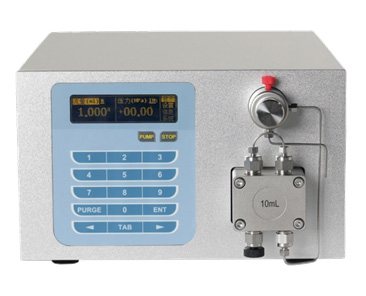

  • 未标题-1.jpg

    High pressure infusion pump is the core component of accurate liquid material transportation. Widely used in pharmaceutical, fine chemical, green chemistry, catalytic reaction, high molecular chemistry, petrochemical, food, energy, environment, materials and other fields.

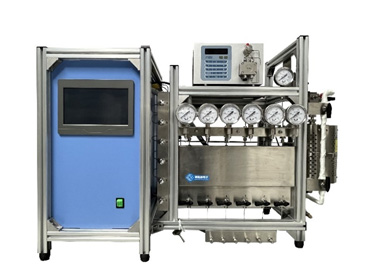

    Advection pump (high pressure plunger pump, high pressure constant current pump, medium pressure constant current pump) Application areas: Petrochemical catalytic reaction, chemical synthesis reaction equipment, micro-channel reactor, fixed bed catalyst evaluation device, distillation separation test device, tube reactor tube reaction device, food, pharmaceutical, liquid chromatography analysis, supercritical extraction, separation, atomic energy science, environmental science of various liquids precise trace transportation.

  • 316L Plunger Pump



    •Water, conventional organic solvents of non-free halogen ions, conventional inorganic concentrated acid solvents (without halogen), conventional organic base reagents, inorganic base solutions, etc.

    •Halogen-containing strong acid solutions at various temperatures, some strong acid solvents and inorganic salts.


  • Model

    HP3010

    HP3050

    HP3100

    HP3200

    Flow range

    0.001-9.999

    (ml/min)

    0.01-50.00

    (ml/min)

    0.01-99.99

    (ml/min)

    0.01-200.00

    (ml/min)

    Flow increment

    0.001ml/min

    0.01ml/min

    Flow accuracy

    ±0.5%

    Flow stability

    RSD≤0.3%

    Pump head material

    316Lstainless steel

    Pump head type

    Series connection

    Parallel  connection

    Liquid contact medium

    316Lstainless steel 、PTFE、PEEK、 sapphire 、   ruby

    316Lstainless steel 、PTFE、PEEK、 sapphire 、   ruby 、 ceramics

    Inlet pipe outer   diameter

    1/8” external diameter

    2mminner diameter

    PTFEpipeline

    4mm external diameter

    2.5mminner diameter

    PTFEpipeline

    6mm external diameter

    4mminner diameter

    PTFEpipeline

    Outlet pipe outer diameter

    1/16”  Standard 316L stainless steel pipe   connection

    Outlet pressure

    ≤42 MPa

    ≤30 MPa

    ≤20 MPa

    ≤10 MPa

    Check valve

    Standard check valve

    Electric machine

    Stepper motor

    Communication protocol

    RS231/485/Modbus    agreement

    reveal

    OLEDliquid-crystal display

    Power source

    100-240V AC,50/60HZ
